Over RPM Percentage Dashboard

Over RPM Percentage is a count of the CAN messages above the over RPM threshold.

Step 1.

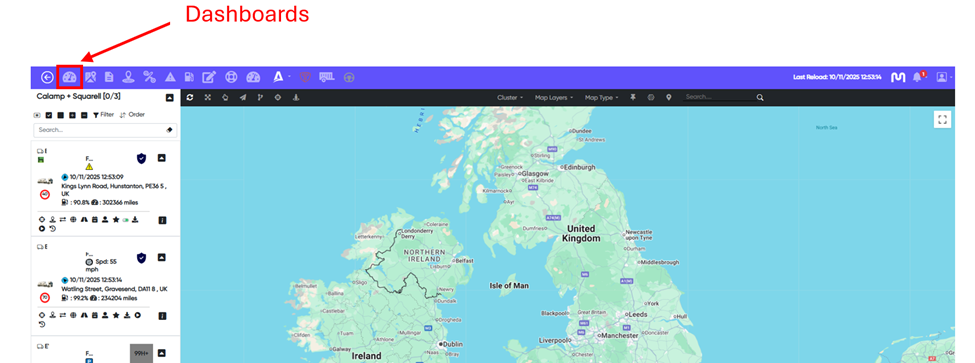

To create this dashboard view, navigate to the group you wish to view and select the "Dashboard" icon.

Step 2.

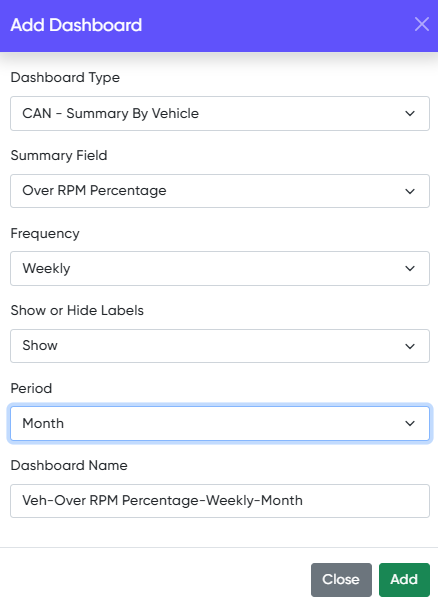

Select "Dashboard Type = CAN - Summary By Vehicle"

Step 3.

Set "Summary Field" = "Over RPM Percentage"

Step 4.

Choose the frequency you want this data to report in at from:

• Daily
• Weekly
• Monthly
• Quarterly

Step 4.

in the "Show or Hide Labels" drop down, you can select to either:

• Show = Charts will have data on each value
• Hide = Charts will not display data on each value

Step 5.

The "Period" drop down will give you the below options for setting what time frame you want to display on the chart.

• Last 2 days (by day)
• Last 3 days (by day)
• Month
• 3 Months
• 6 Months
• 12 Months
• 24 Months

Step 6.

Dashboard name will populate by default in the format of Dashboard type > Dashboard field being displayed > Frequency > Period, as below. However users also have the ability to overwrite this and name it as they please.

Step 7.

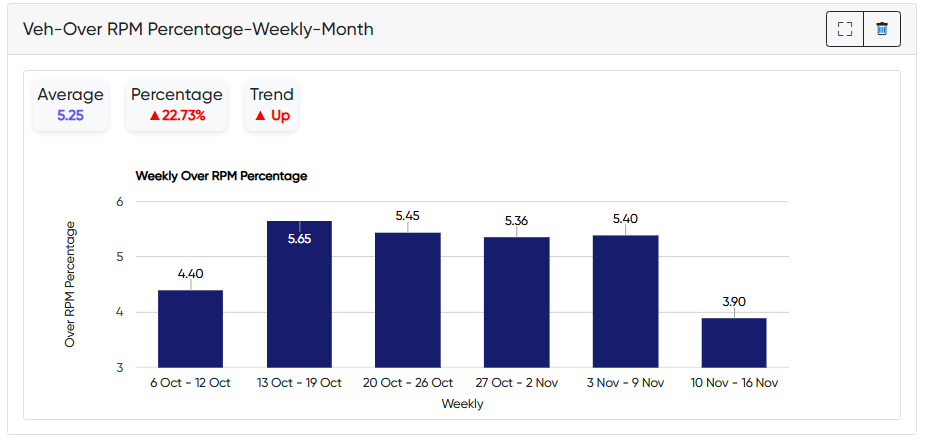

Once setup, it will look as below:

• Average =  Average percentage of time spend in over RPM state for time frame of dashboard.
• Percentage = Indicates the percentage change between the most recent complete data set and the first complete data set shown on the graph below.
• Trend = Highlights whether the trend is moving upward or downward from the first complete data set to the most recent complete data set on the graph shown below.
