Track Smart Pro Total Mark History

This report is applicable for customers with Track Smart Pro (Calamp standard, OBD & Teltonika devices) & Fuel Smart Pro solutions (Squarell device) and can only be ran for any time before today’s date.

Step 1.

Highlight the vehicle or vehicles you wish to run the report for from the left-hand vehicle list.

Step 2.

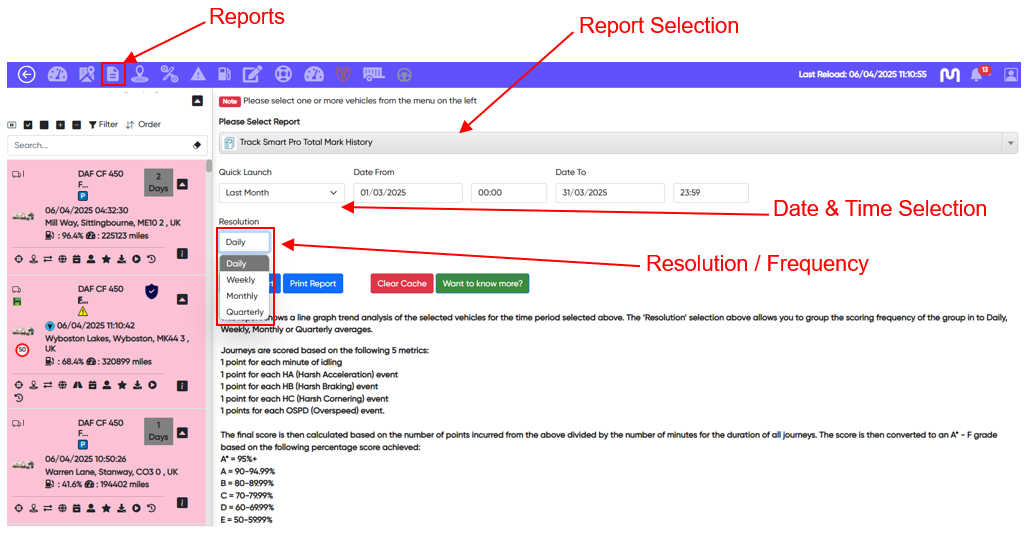

Select the 'Reports' icon from the top blue menu bar.

Step 3.

Select 'Track Smart Pro Total Mark History' from the 'Please Select Report' drop down.

Step 4.

Select the Date/Time 'From' and 'To' from the Date & Time Selection options shown below.

Step 5.

Select the "Resolution" time frame you wish to run this report for. This can be:

• Daily
• Weekly
• Monthly
• Quarterly

Step 6.

Click 'Load Report' to run the report against your selected criteria.

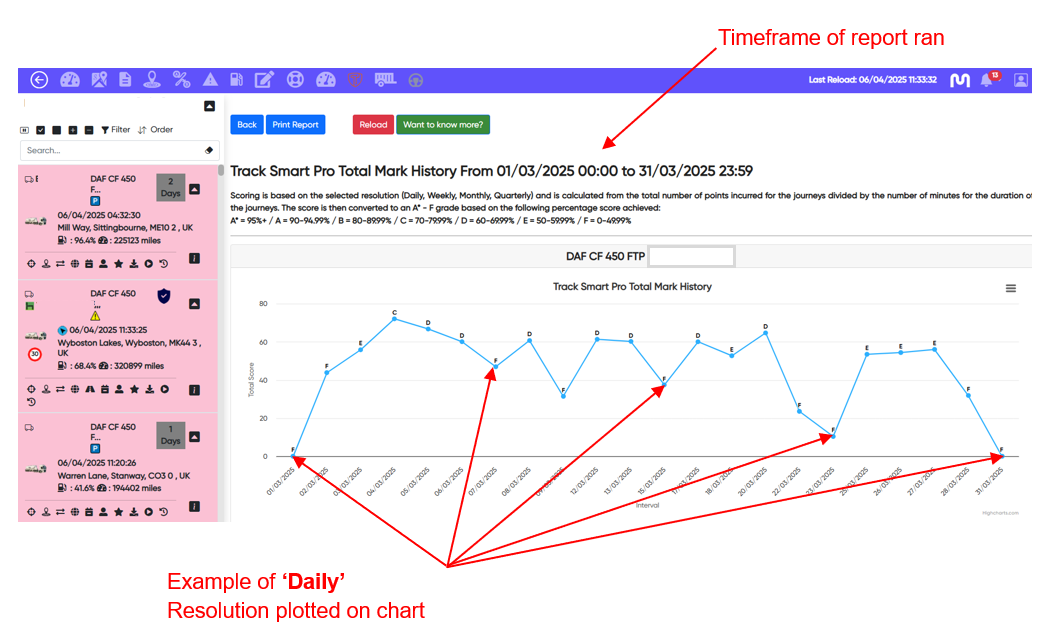

This report shows a line graph trend analysis of the selected vehicles for the time period selected above. The ‘Resolution’ selection above allows you to group the scoring frequency of the group in to Daily, Weekly, Monthly or Quarterly averages.

Journeys are scored based on the following 5 metrics:

• 1 point for each minute of idling
• 1 point for each HA (Harsh Acceleration) event
• 1 point for each HA (Harsh Braking) event
• 1 point for each HA (Harsh Cornering) event
• 1-6 points for each OSPD (Overspeed) event based on the percentage of speed over the limit and the speed limit zone being travelled in.

The final score is then calculated based on the number of points incurred from the above divided by the number of minutes for the duration of all journeys. The score is then converted to an A* - F grade based on the following percentage score achieved:

• A* = 95%+
• A = 90-94.99%
• B = 80-89.99%
• C = 70-79.99%
• D = 60-69.99%
• E = 50-59.99%
• F = 0-49.99%
