AdBlue Level Report

The "AdBlue Level Report" allows you to select multiple vehicles and check the AdBlue level in applicable vehicles in graph format.

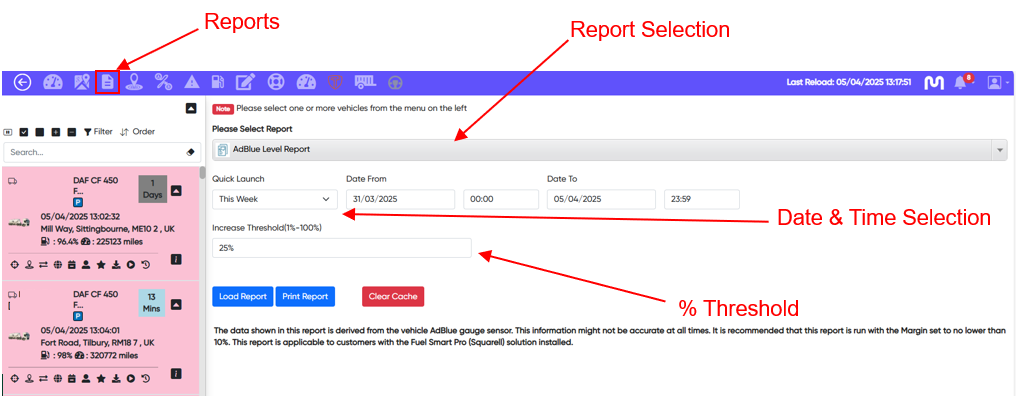

Step 1.

Highlight the vehicle or vehicles you wish to run the report for from the left-hand vehicle list.

Step 2.

Select the 'Reports' icon from the top blue menu bar.

Step 3.

Select 'AdBlue Level Report' from the 'Please Select Report' drop-down.

Step 4.

Select the Date/Time 'From' and 'To' from the Date & Time Selection options shown below.

Step 5.

Set the threshold % you wish to run the report for. (% increase or decrease that is to be exceeded to then display on report).

Step 6.

Click 'Load Report' to run the 'AdBlue Level Report' against your selected criteria.

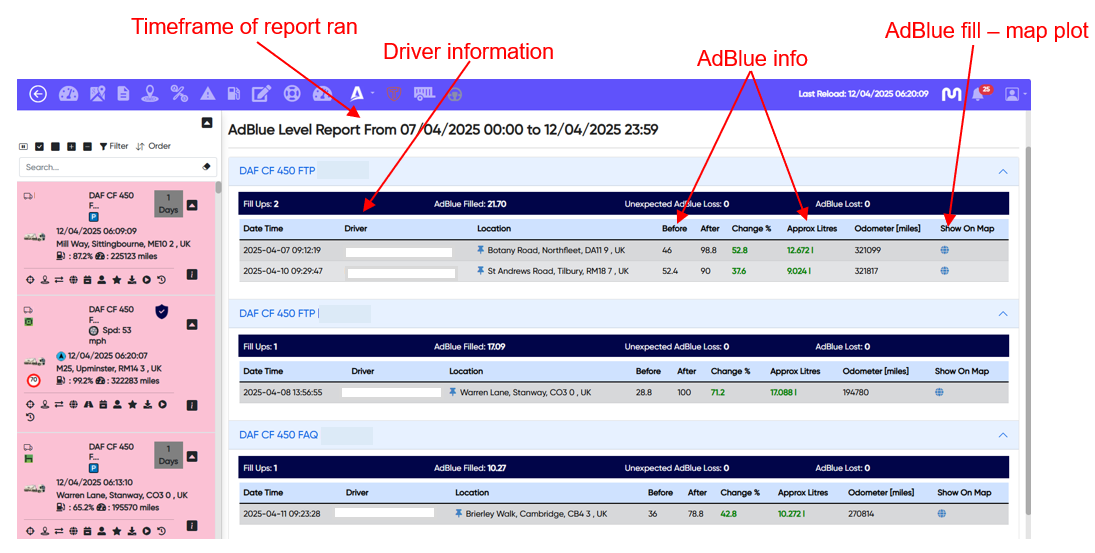

Step 6.

Report will load with details as below.

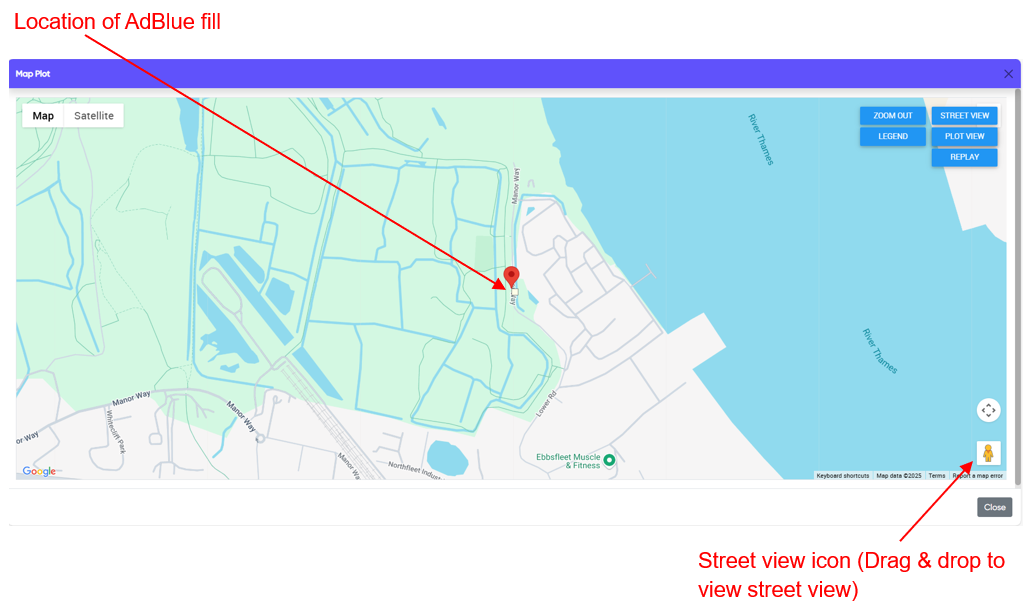

Step 7.

When you select the "Show on Map" option, this will populate a Map view of the location of the detected fill, as below:

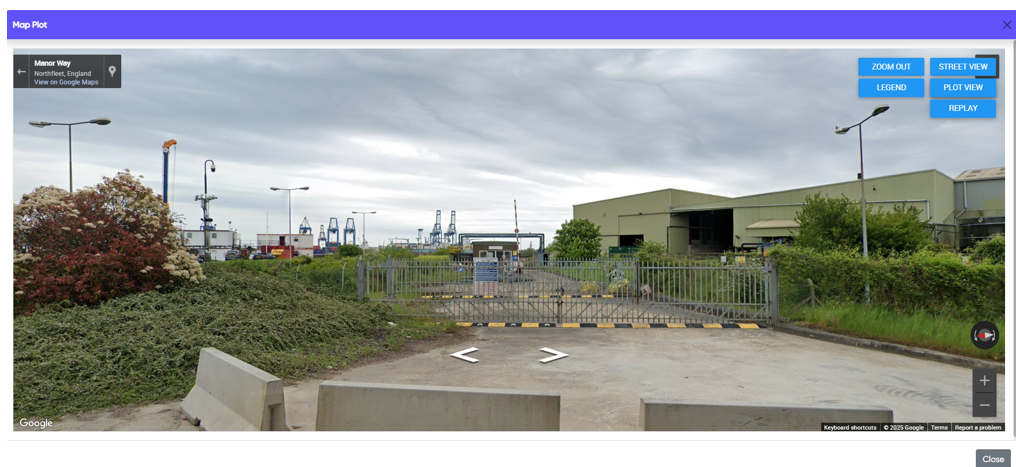

Step 8.

The "Person" Icon can be dragged and dropped on the map to display street view (useful for confirming if it was a genuine AdBlue fill).
