Teltonika 2-wire Tracker Self-install

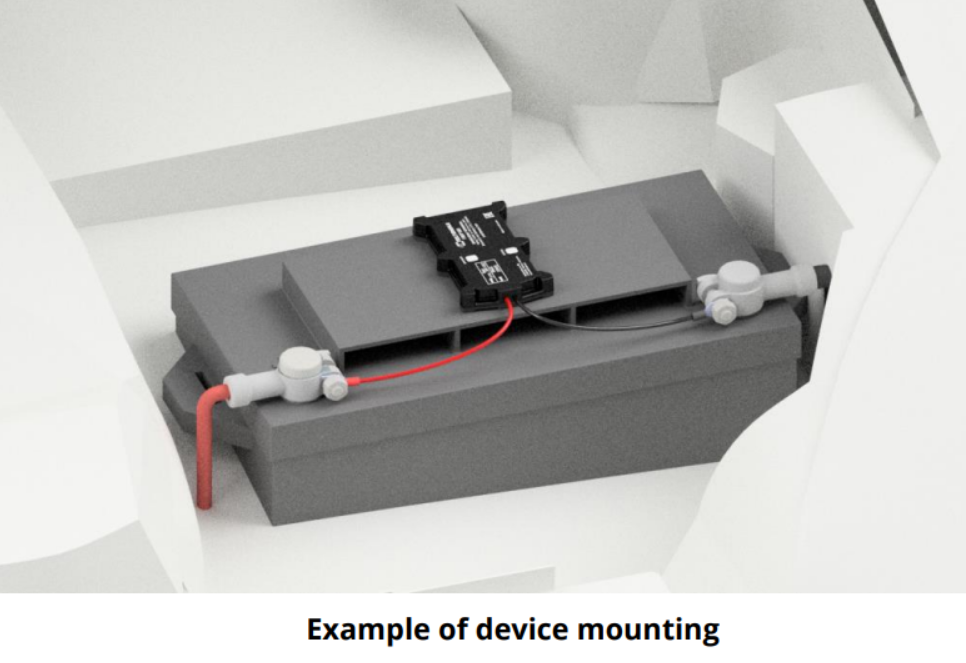

Device fastening:

• Locate the battery in your vehicle. If present remove the battery cover to access the battery.

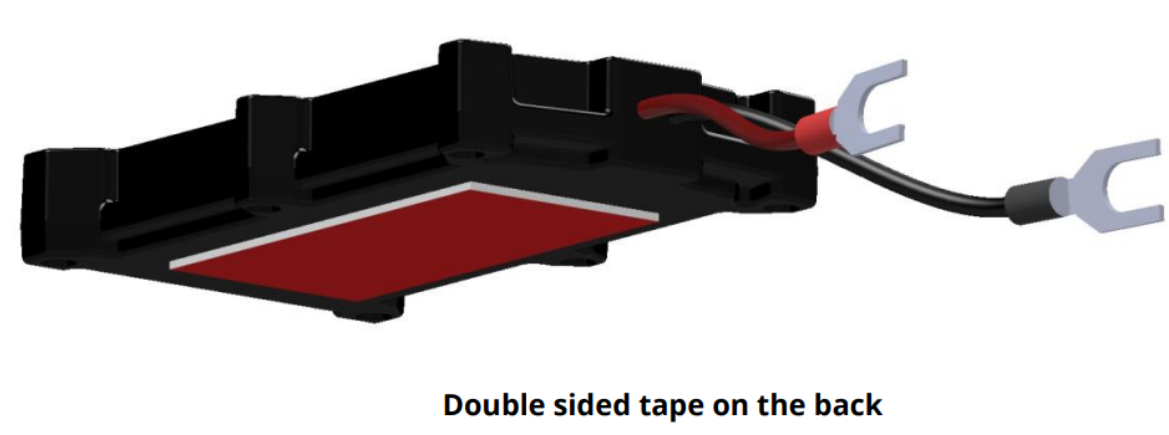

• There is a double-sided tape on the back of the device, use it to attach the device on the battery, so that the GNSS antenna and LEDs indicators are facing up.

Connecting power wire:

• Device power wire is designed to be directly connected to the positive terminal fastener of the vehicle battery.

Connecting ground wire:

• Device ground wire is designed to be directly connected to the negative terminal fastener of the vehicle battery
