Please find links below to Motia Installation Guides for our key products:
Installation Guides:
- Track Smart (Calamp) - Standard 3 wire tracking installation
- Fuel Smart Pro (Squarell) - CAN-Bus telematics unit installation
- Camera Smart Pro (4 or 8 Ch DVR) - 1-8 vehicle CCTV installation
- City Smart Pro (AI Side Scan) - hardware installation guide for standalone and DVR integrated options,
- City Smart Pro (AWAI Mobile App Setup) - configuration guide for configuring the City Smart Pro system for BSIS and/or MOIS configurations.
- Tacho Smart (DigiDL-LisleRDSL) - hardware installation guide
- DVR Relays & Left Turn Alarm Relays - Installation & Troubleshooting Guide
- Trailer Smart (Calamp) Installation - Trailer tracker installation via EBS connection
- Track Smart (OBD Calamp) Installation - Connection to OBDII port plus optional Y-splitter installation guide
For further assistance please contact the Motia Support Team on fleetsupport@motia.com or 02894 485 423

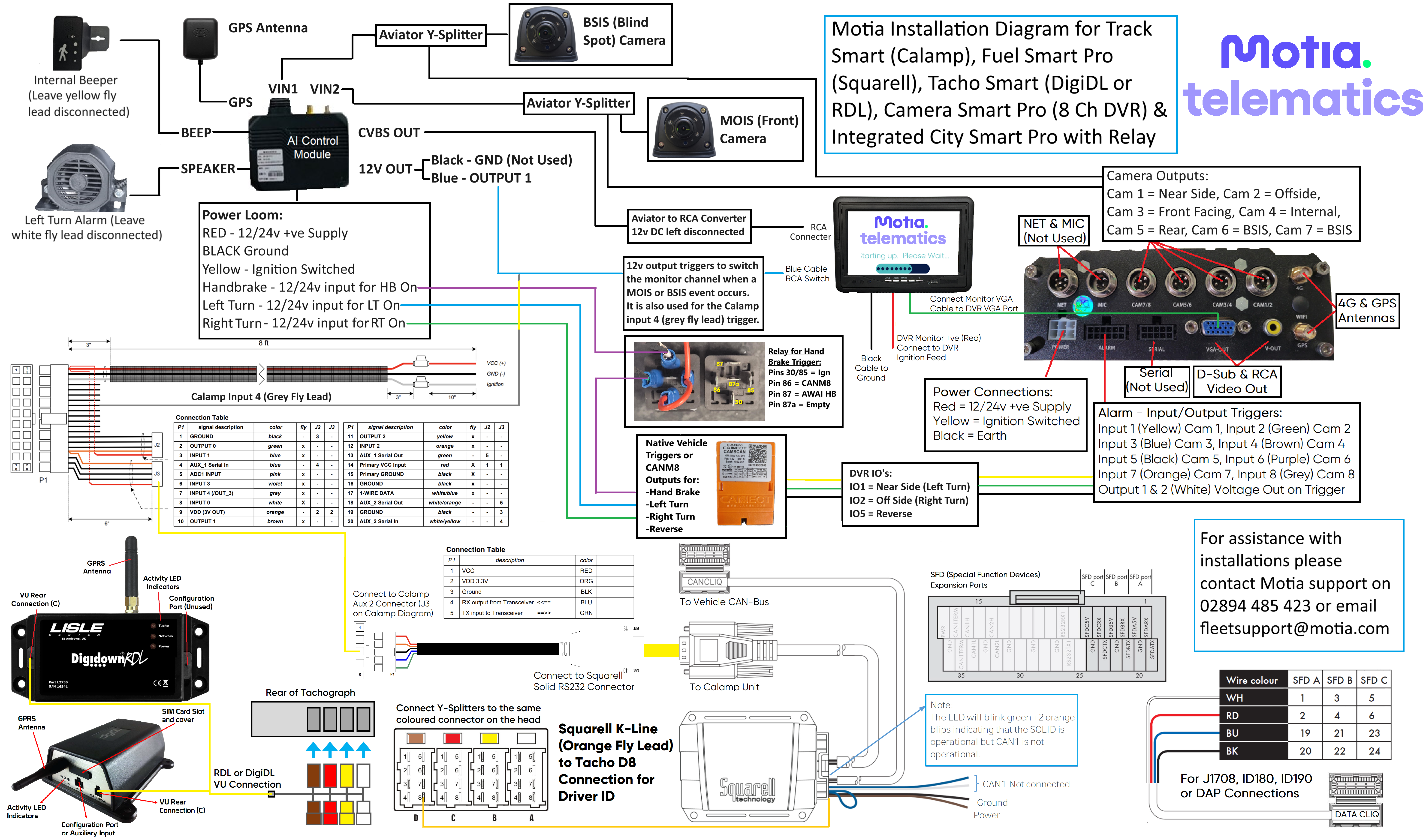

Motia Installer Wiring Diagram for Track Smart (Calamp), Fuel Smart Pro (Squarell), Tacho Smart (Lisle or Tachosys DL), Camera Smart Pro (8Ch DVR), and Integrated City Smart Pro (AI DVS Side Scan)
(right click and select open image in new tab to display full screen)

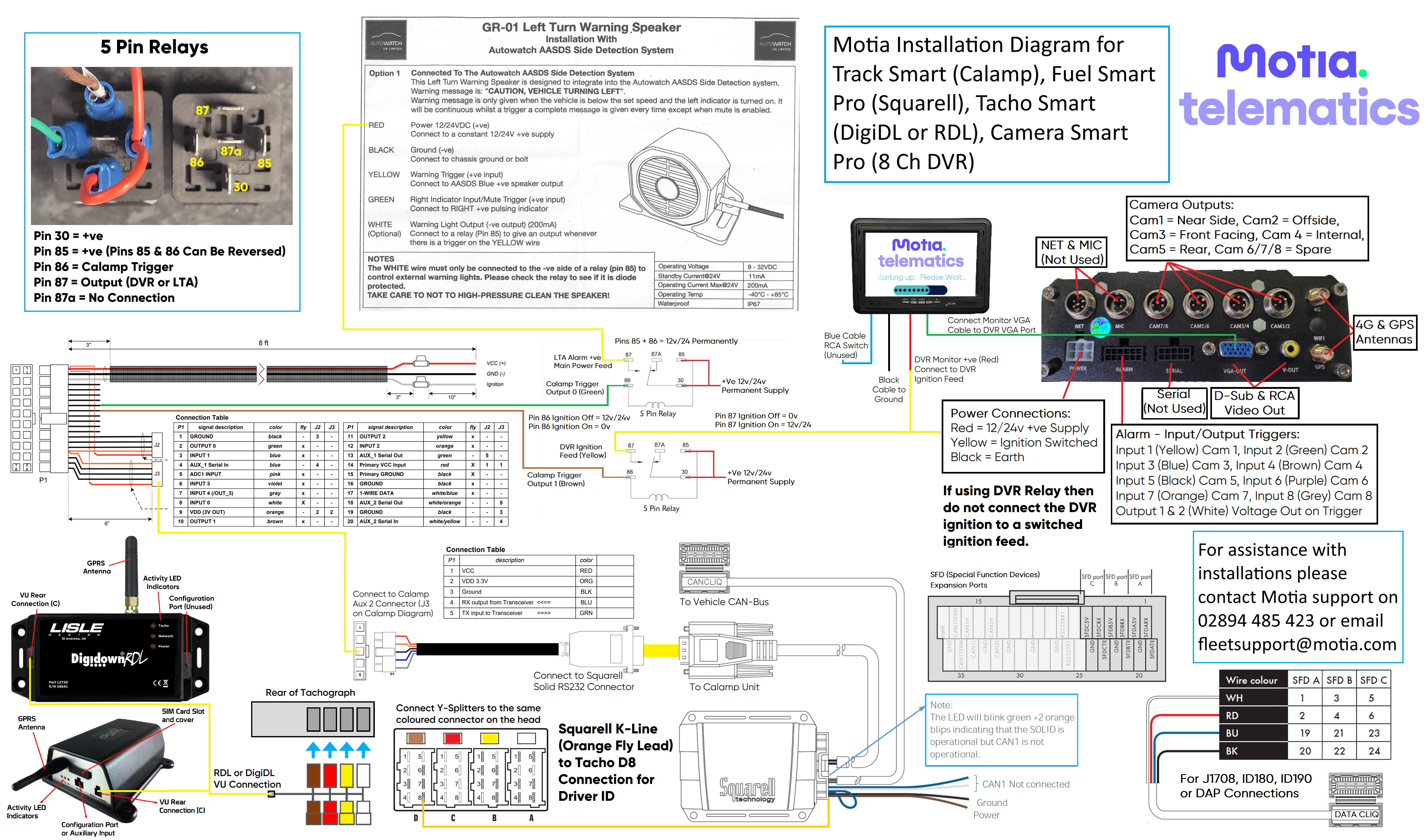

Motia Installer Wiring Diagram for Track Smart (Calamp), Fuel Smart Pro (Squarell), Tacho Smart (Lisle or Tachosys DL), Camera Smart Pro (8Ch DVR) & City Smart (Ultrasonic DVS Side Scan):
(right click and select open image in new tab to display full screen)

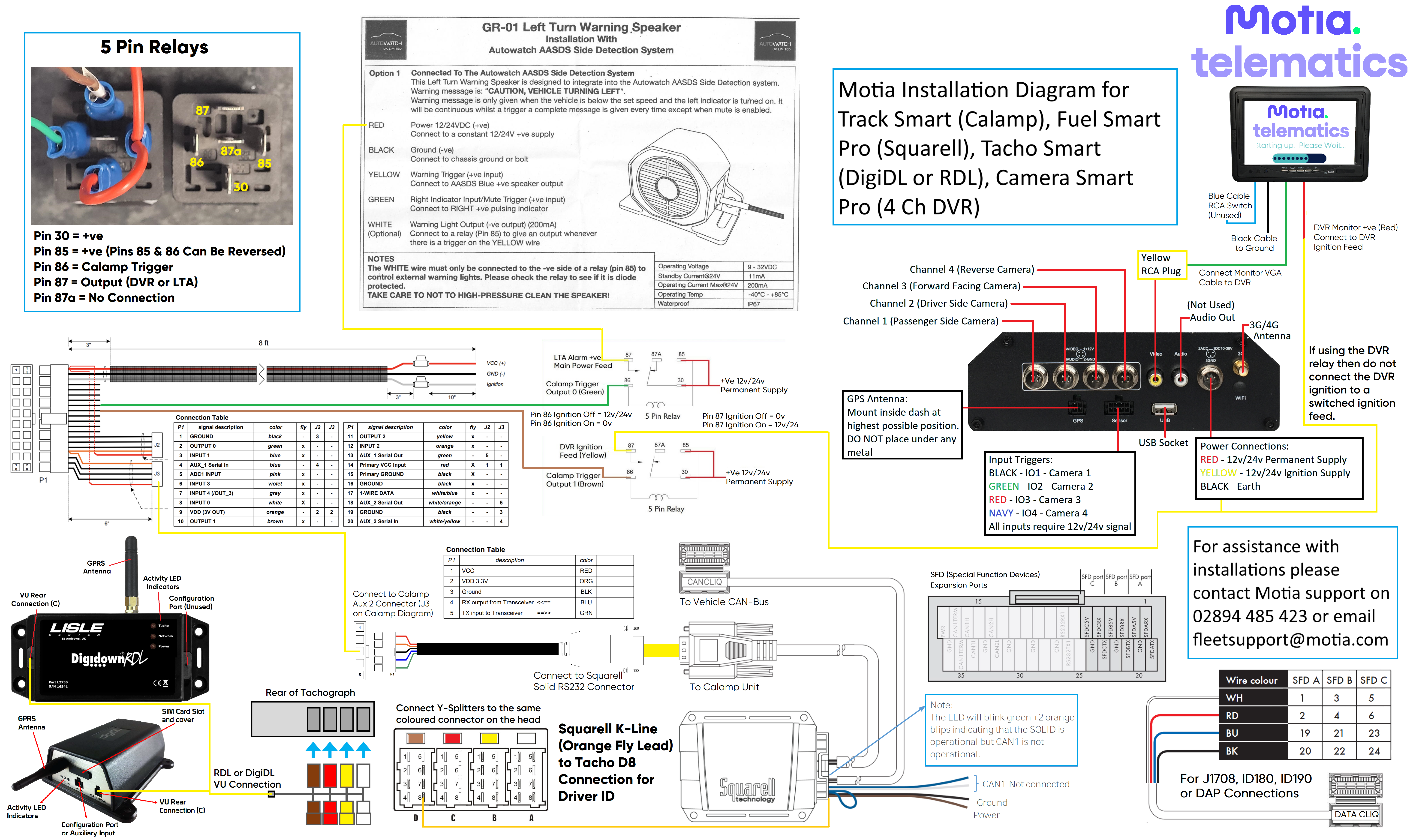

Motia Installer Wiring Diagram for Track Smart (Calamp), Fuel Smart Pro (Squarell), Tacho Smart (Lisle or Tachosys DL), Camera Smart Pro (4Ch DVR) & City Smart (Ultrasonic DVS Side Scan):(right click and select open image in new tab to display full screen)
**Please find a link below to download the pdf versions of this article ***
