Track Smart OBD (Calamp) Installation

Example Vehicle: Peugeot Boxer 2019

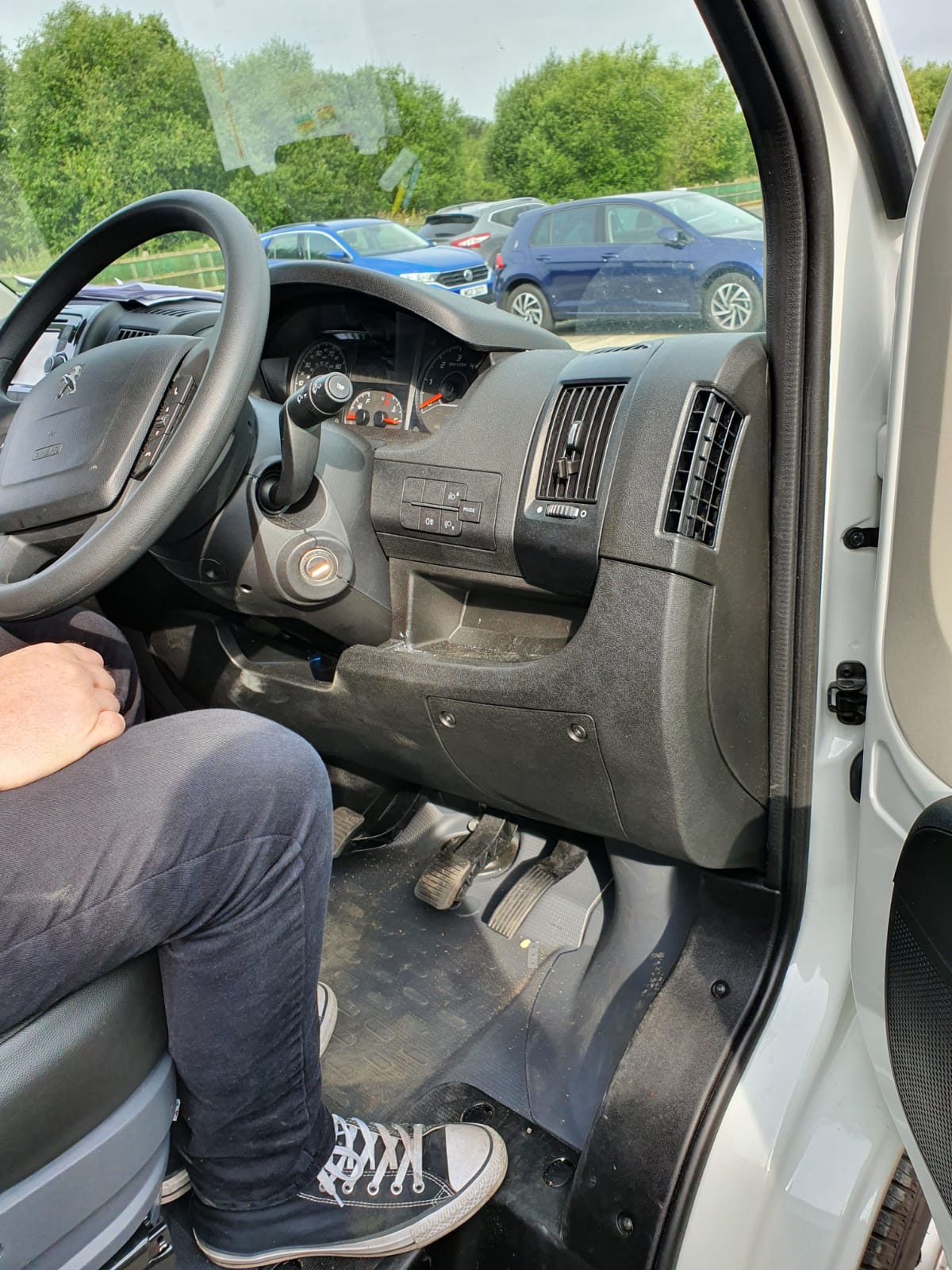

OBD Port Location: Behind the panel to the right hand side of of steering wheel

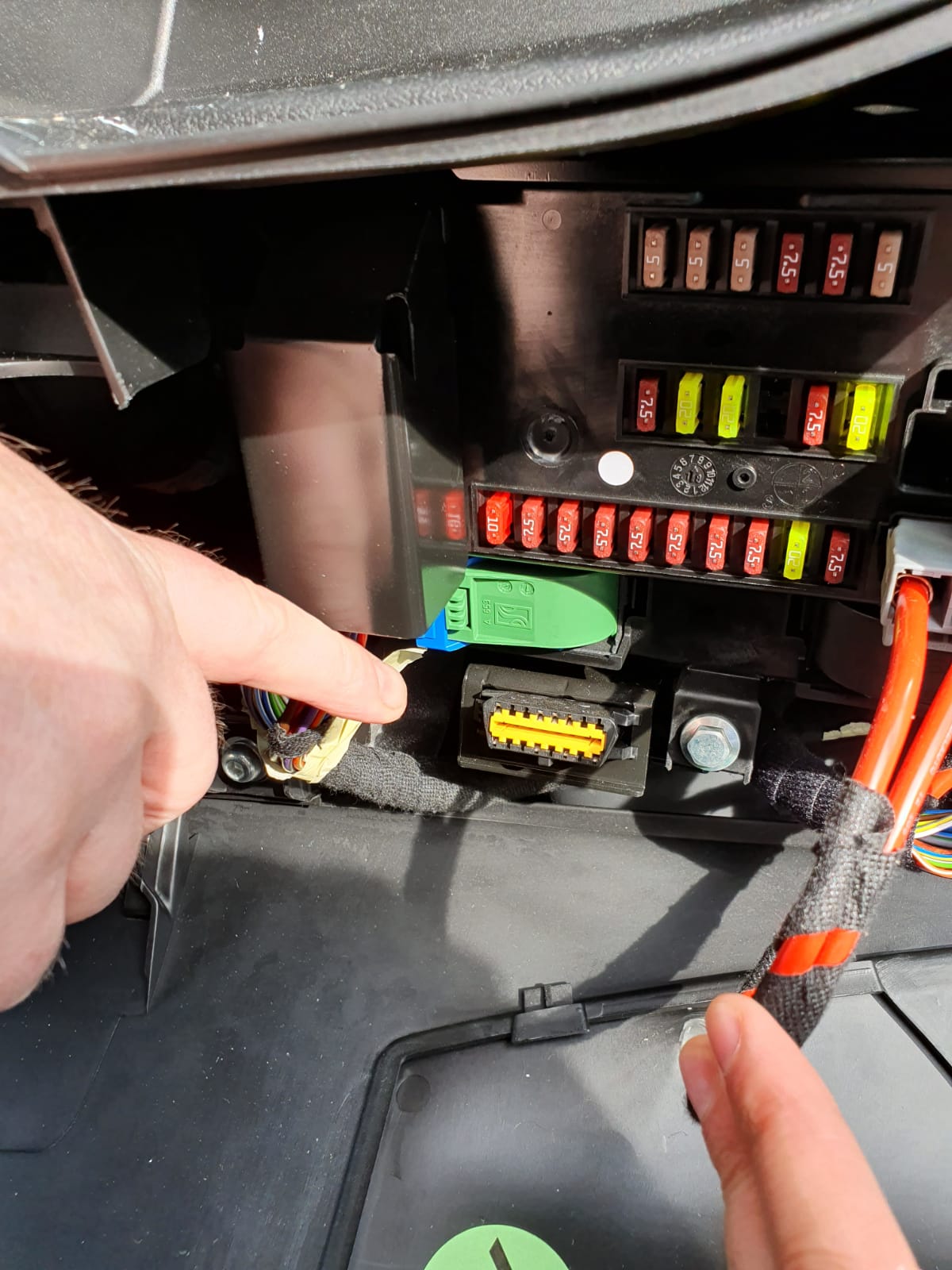

OBD Port located at the bottom in the centre:

 If connecting the OBD unit without the discreet Y-splitter cable then simply connect on to the yellow plug and check for the lights lighting up on the side of the unit.

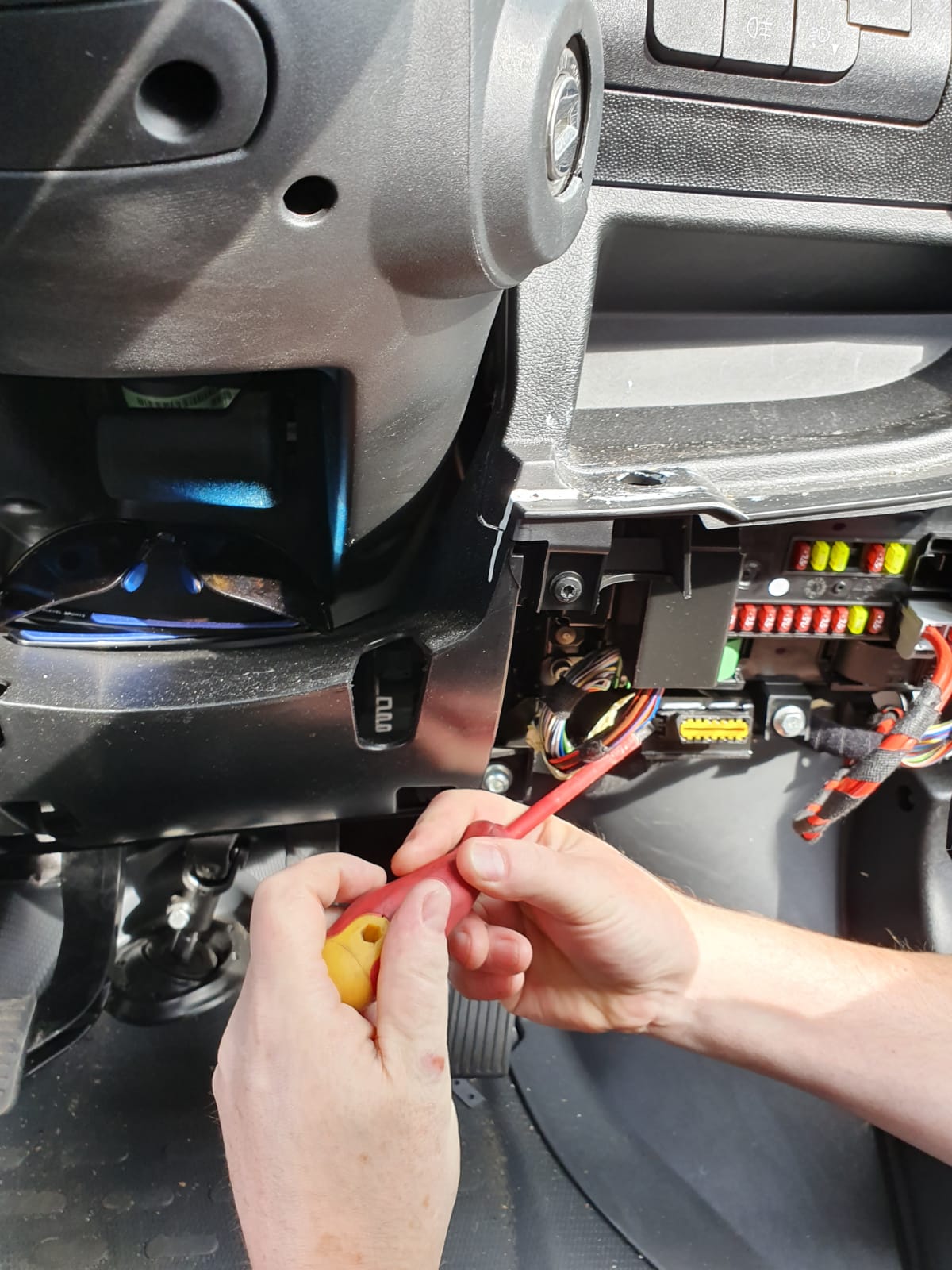

 If using the Y-splitter cable then begin removing the original OBD port using a flat blade screwdriver to release the clip holding it in place:

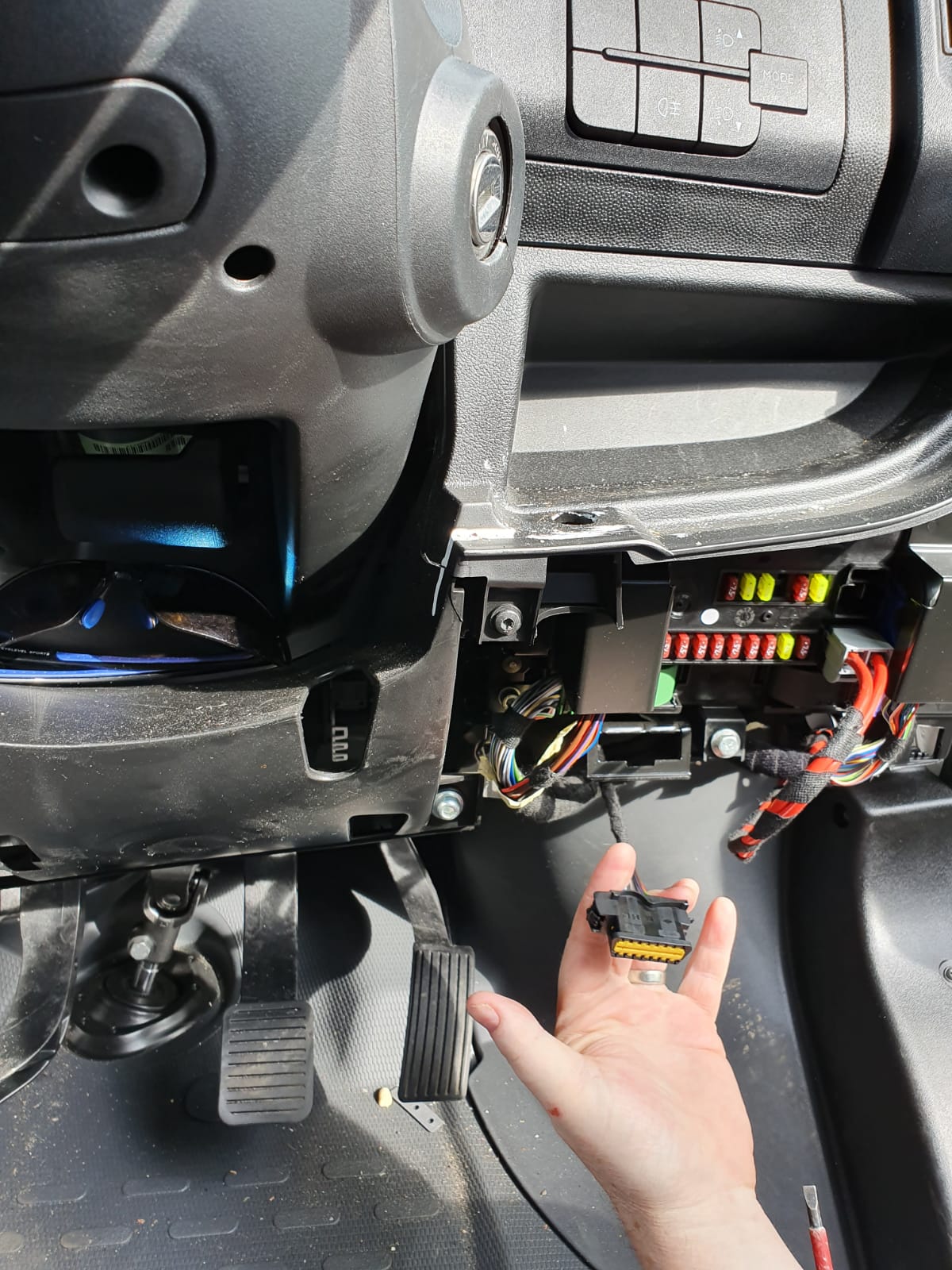

 Remove the OBD port and ensure full cable length is released also:

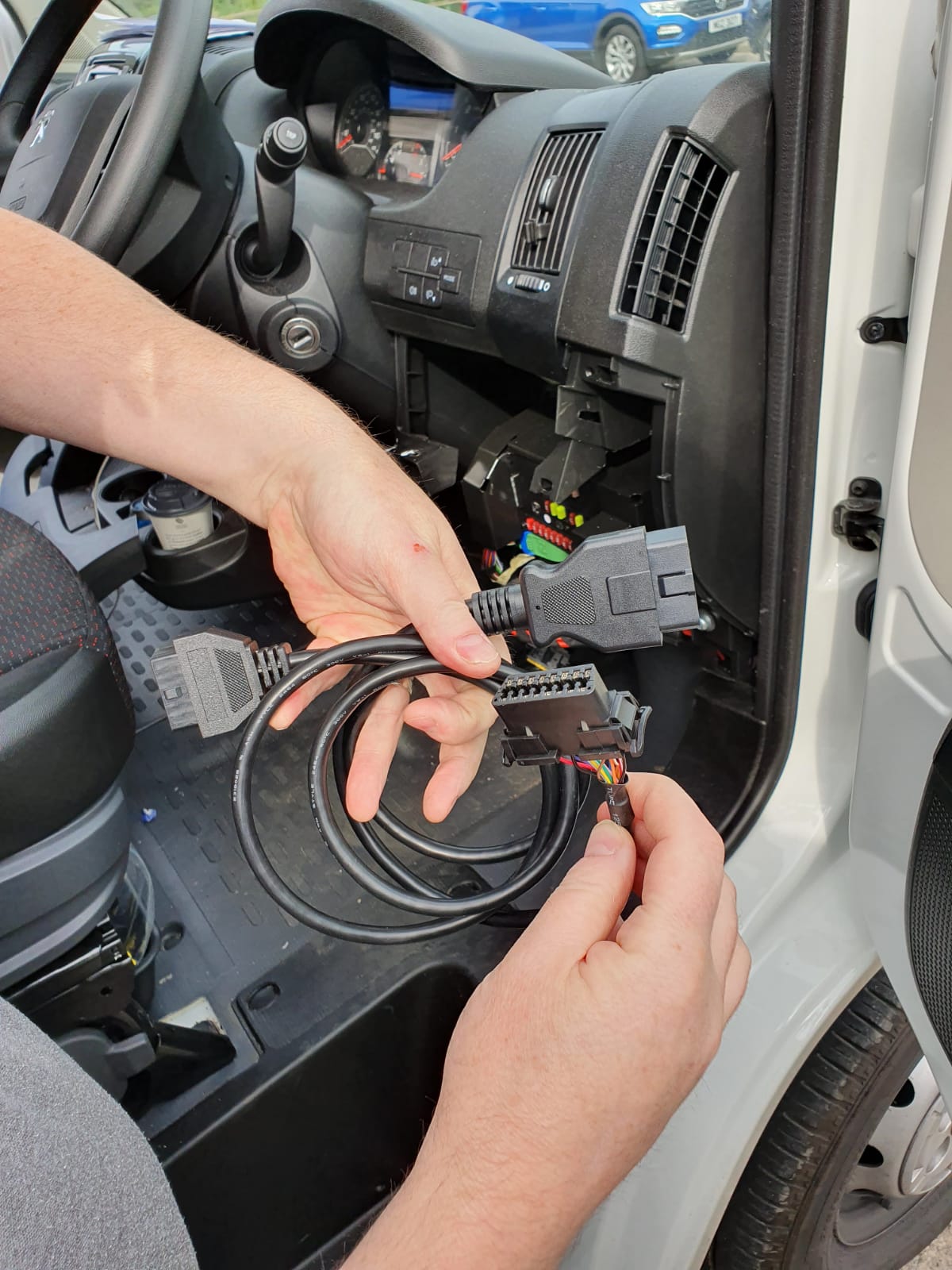

Connect the Y-splitter cable to the original OBD port and then hide discreetly behind fuse panel:

Fix the replacement female OBD port in to the new mounting bracket supplied with the Y-splitter cable and locate a suitable location to install it:

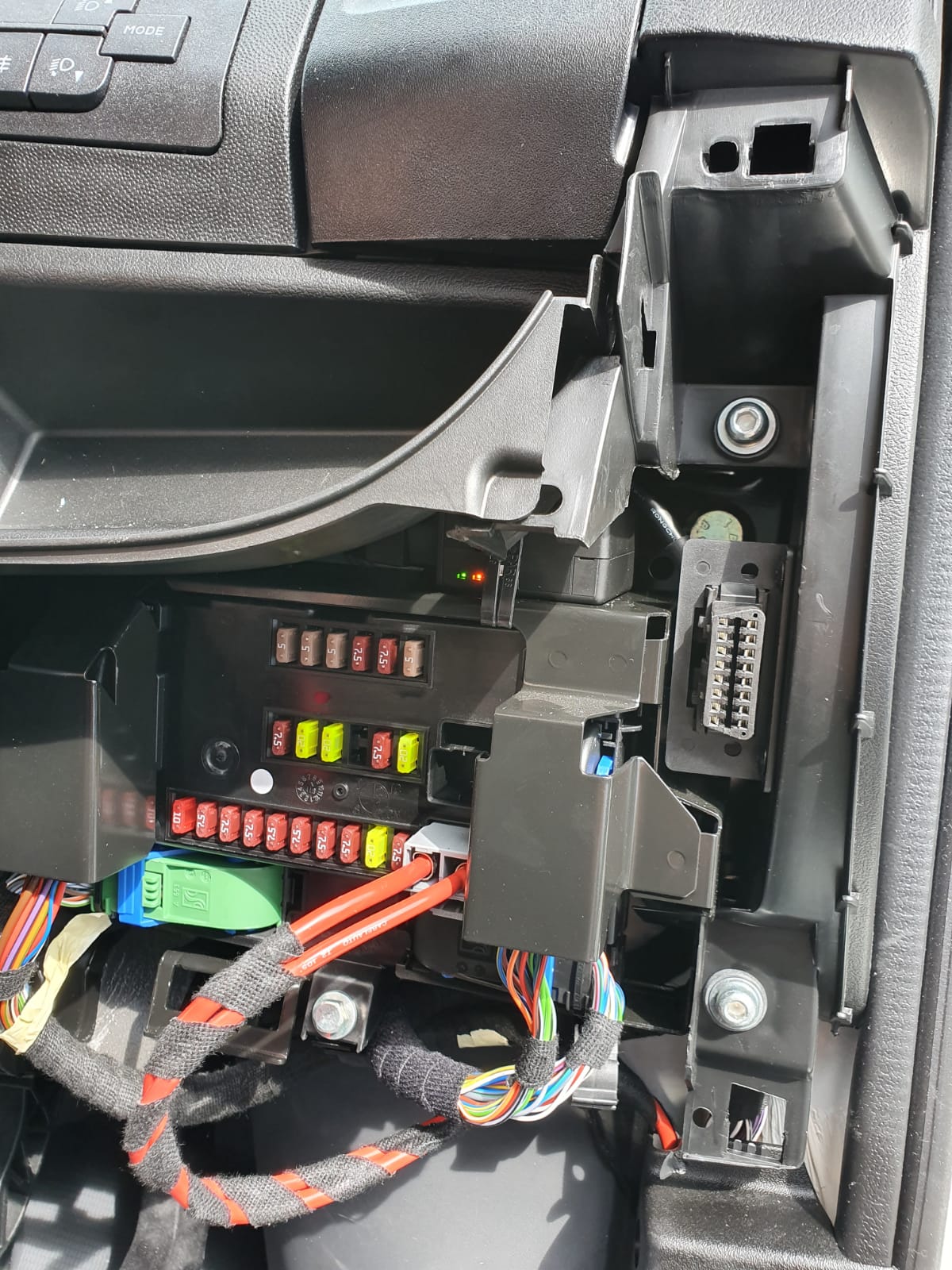

 Mount the replacement bracket in a suitable location as shown below:

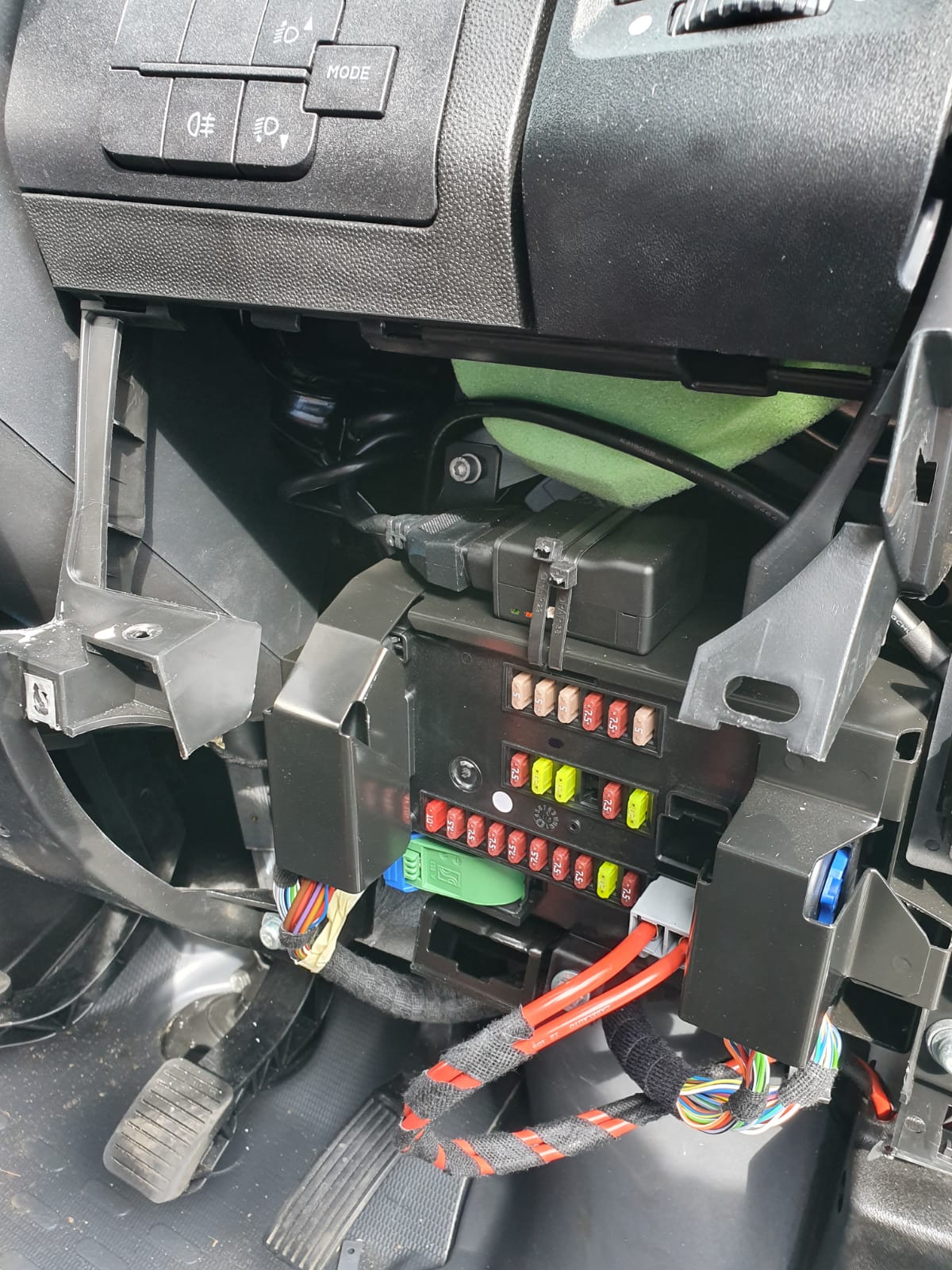

Cable tie and hide any excess cabling:

Ensure the OBD unit is cable tied in to position also, with top side facing up. This is important for the GPS and accelerometer functions to work correctly.

For further assistance please contact the Motia Support Team on fleetsupport@motia.com or 02894 485 423
